Plug-in Hybrid SUV BG X7 5/7 Seat Spacious and Powerful SUV Support
Assembly
BG X7 Introduction:
BG X7 is a plug-in hybrid SUV, which combines Chery's flagship
chassis technology, BYD and FDD powertrains, as well as Ningde
Times batteries and other excellent technological resources in the
industry, to achieve a comprehensive improvement in range, space,
power and other aspects.
Technical features:
Chassis Technology: The BG X7 adopts Chery's flagship chassis technology, shared with
Chery Xingtu Yaoguang, Ruihu 9 and other models, providing good
handling stability and ride comfort.
Powertrain: BG X7 is equipped with a 1.5T engine and P1+P3 dual motors, with a
combined maximum power of 252kW, maximum torque of 523N-m, and a
100km acceleration time of 7.7 seconds.
Battery Technology: BG X7 is equipped with a top-quality battery from Ningde Times
with a capacity of 22.48 kWh, providing a pure electric range of
150 kilometers and a combined CLTC range of up to 1,200 kilometers.
Safety Performance: BG X7 is designed in accordance with C-NCAP 5-star safety
standards and is equipped with L2 level active and passive
intelligent safety assistance system to ensure the safety
performance of the vehicle.
BG X7 Parameters
| Technical Specifications |
| DRIVE MOTOR | DESCRIPTION |
| Energy Type | Plug-in hybrid |
| Displacement (L) | 1.5 |
| Intake form | Turbocharged |
| Engine Layout | Place horizontally |
| Cylinders(pcs) | 4 |
| Number of valves per cylinder (pcs) | 4 |
| Distribution Mechanism | DOHC |
| Maximum horsepower (Ps) | 139 |
| Maximum power (kW) | 102 |
| Maximum power speed(rpm) | 5200 |
| Maximum torque(N·m) | 231 |
| Maximum torque(rpm) | 2000-4000 |
| Fuel Standard | #92 |
| Environmental standard | China Ⅵ |
| Motor Type | Permanent Magnet Synchronization |
ELECTRIC MOTOR | DESCRIPTION |
| Number of Driving Motors | Single Motor |
| Motor Layout | Front |
| Maximum Power(kW) | 150 |
| Maximum Torque(N.m) | 300 |
| Maximum speed(Km/h) | 180 |
| BATTERY PACK | DESCRIPTION |
| Battery Type | Lithium iron phosphate battery |
| Rated Power(kW.h) | 22.48 |
| CLTC(km) | 150 |
| Fast Charging Time (h) | 0.5h for fast charging |
| Battery Fast Charge Range(%) | 80 |
| EXTERIOR | DESCRIPTION |
| Length*Width*Height(mm) | 4736*1968*1708 |
| Wheelbase(mm) | 2820 |
| Wheel Track Front(mm) | 1652 |
| Wheel Track Rear(mm) | 1652 |
| Approach angle | 18 |
| Departure angle | 22 |
| CHASSIS | DESCRIPTION |
| Front Suspension | Mcpherson independent suspension |
| Rear Suspension | Multi-link independent suspension |
| Front Brakes | Ventilated Disc Brake |
| Rear Brakes | Disc Brake |
| Parking Brake | Electric Parking |
| ABS/EBD | Standard |
| Drive Type | FF |
| Transmission Type | E-CVT |
| Steering Form | Electric Power Steering (EPS) |
| Tire Size | 255/ 50 R20 |
| BODY | DESCRIPTION |
| Body Structure | Five-door, Five/Seven-seat SUV |
| Seat Belt Type | Three-Poin |
| Air Conditioning | Automatic air conditioning |

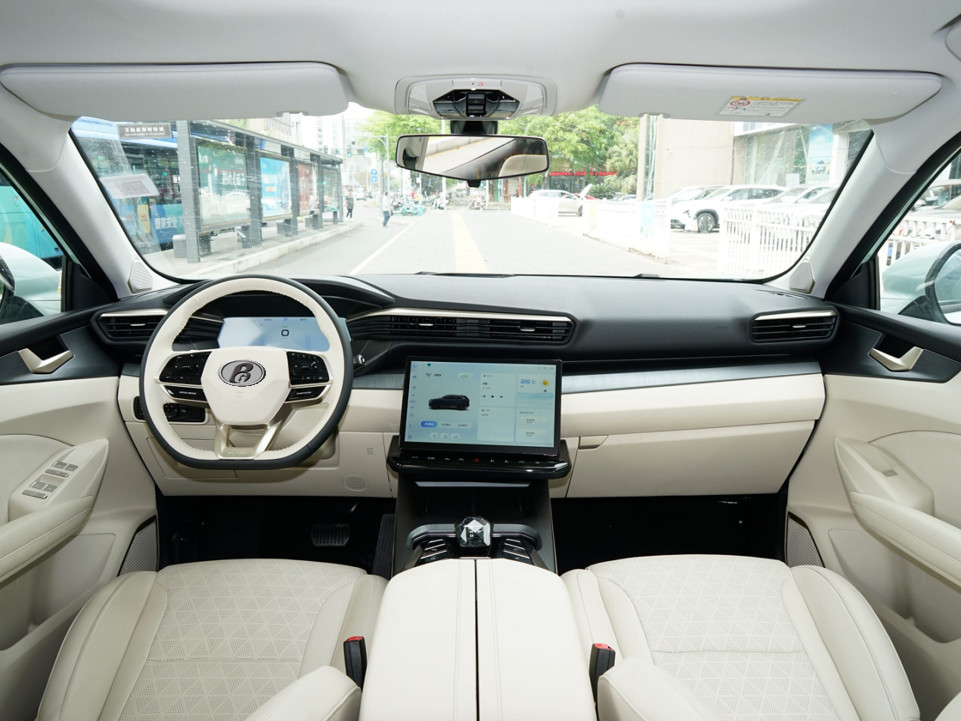

Detailed Pictures
